Power source socket-front

WARNING

Before repairing any electrical components, the power mode must be set to the "OFF" state. Unless otherwise stated in the operating procedures. If the tool or the equipment contacts the charged bare electric terminals easily, the negative cable of the battery shall also be disconnected. Please refer to the chapter on negative cable of the battery for specific operation steps. Any violation of these safety instructions may result in personal injuries or damages to the vehicle and its components.

NOTE

  • There might be some differences on illustrations of this program, and you are advised to the vehicle configuration, but the basic information is always correct.

  • There might be some parts that are not displayed on the illustration. That will help display the main parts more clearly.

Removal

  1. Remove the console moulding switch panel assembly-front. See:Console moulding switch panel assembly-front

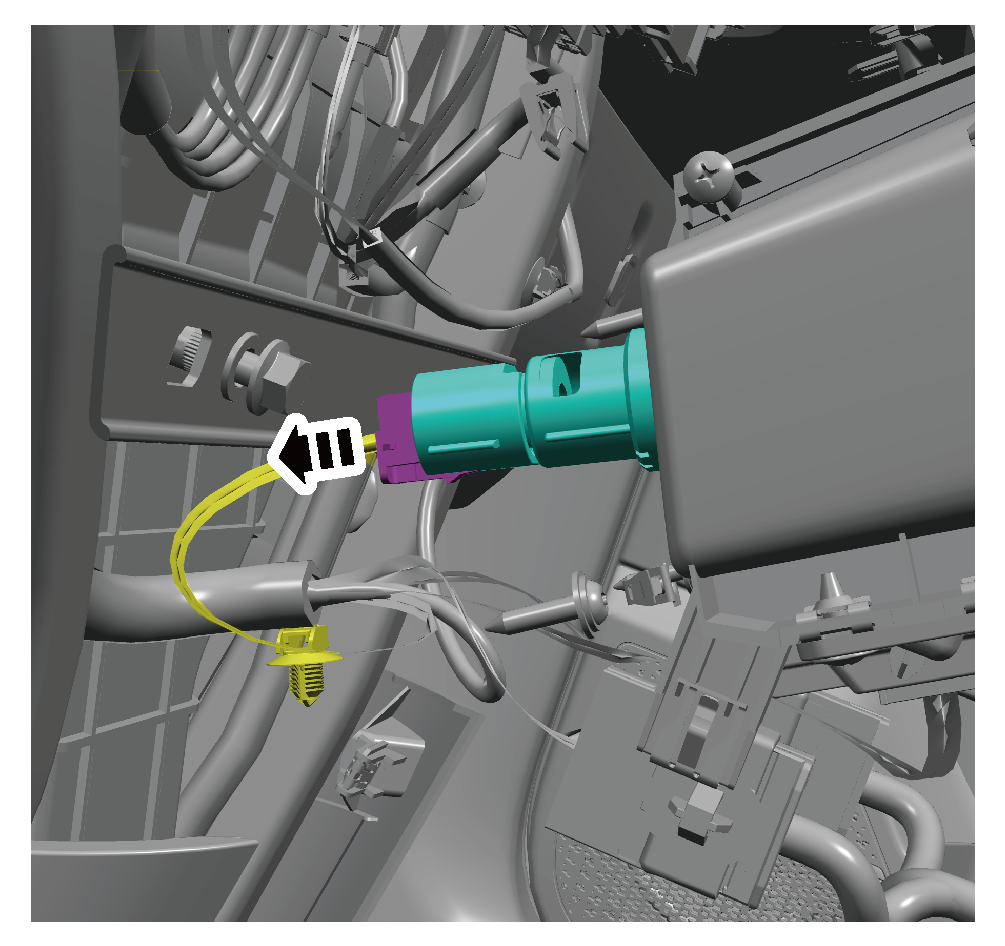

  2. Disconnect the harness connector of power source socket-front.

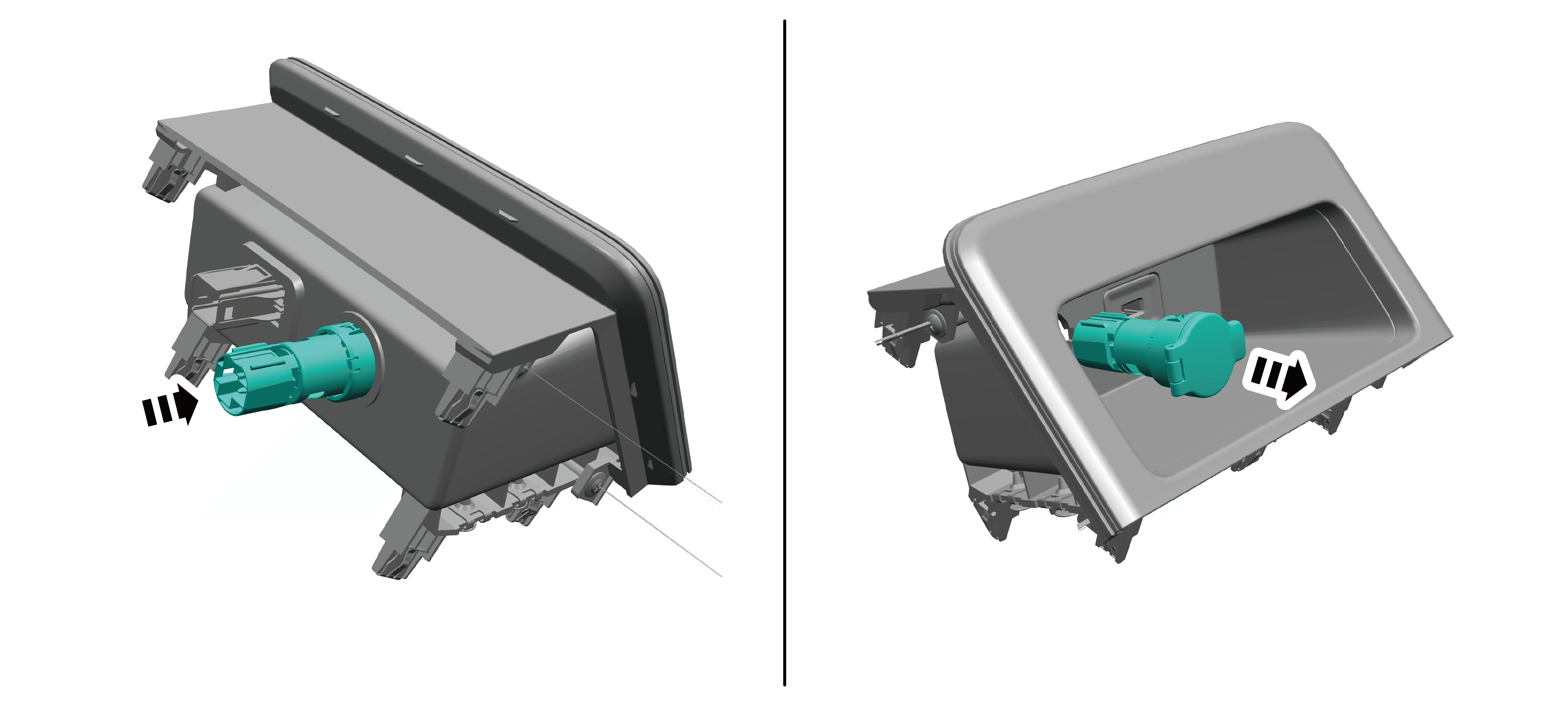

  3. As shown in the figure, press the rear power socket-front with the palm of hand and remove the power socket-front.

Mounting

  1. Install power source socket-front.
  2. Connect the harness connector of power source socket-front.
  3. Install the console moulding switch panel assembly-front. See:Console moulding switch panel assembly-front
